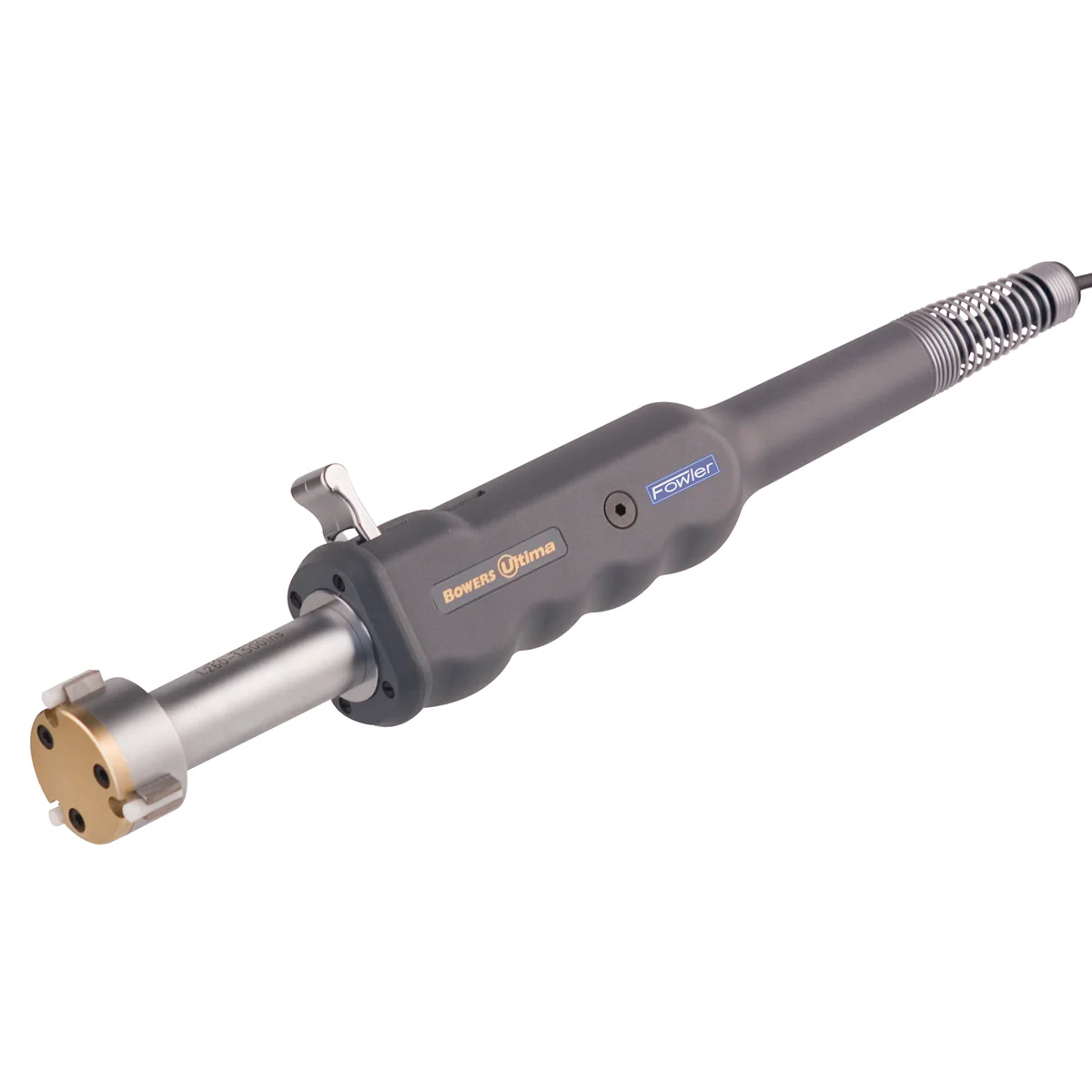

Fowler 0.393" - 0.787"/10 - 20mm Ultima Bore Gaging Set

Featuring Fowler Bowers historic quality and high-accuracy the Ultima Bore Gaging System is the next generation of Bower's famous Super-Bore line of bore gages and accessories.

Features:

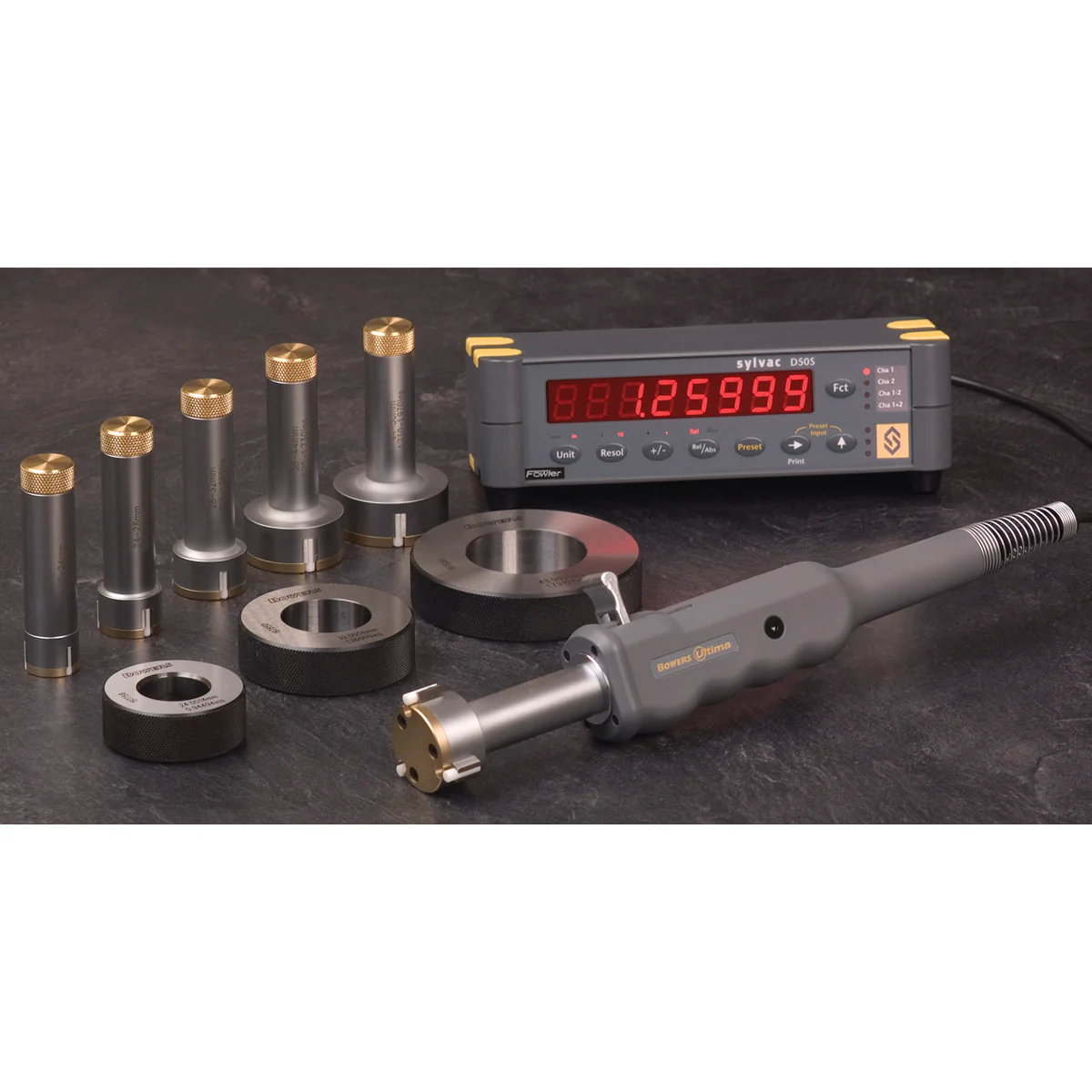

• Set includes: handle, rings and heads - does not include readout
• Measuring range: 0.078" - 12.3"/2 - 310mm
• Resolution: 0.00001"/0.0001mm
• Constant spring pressure ensures top repeatability
• Positive feel when heads self-center in the bore

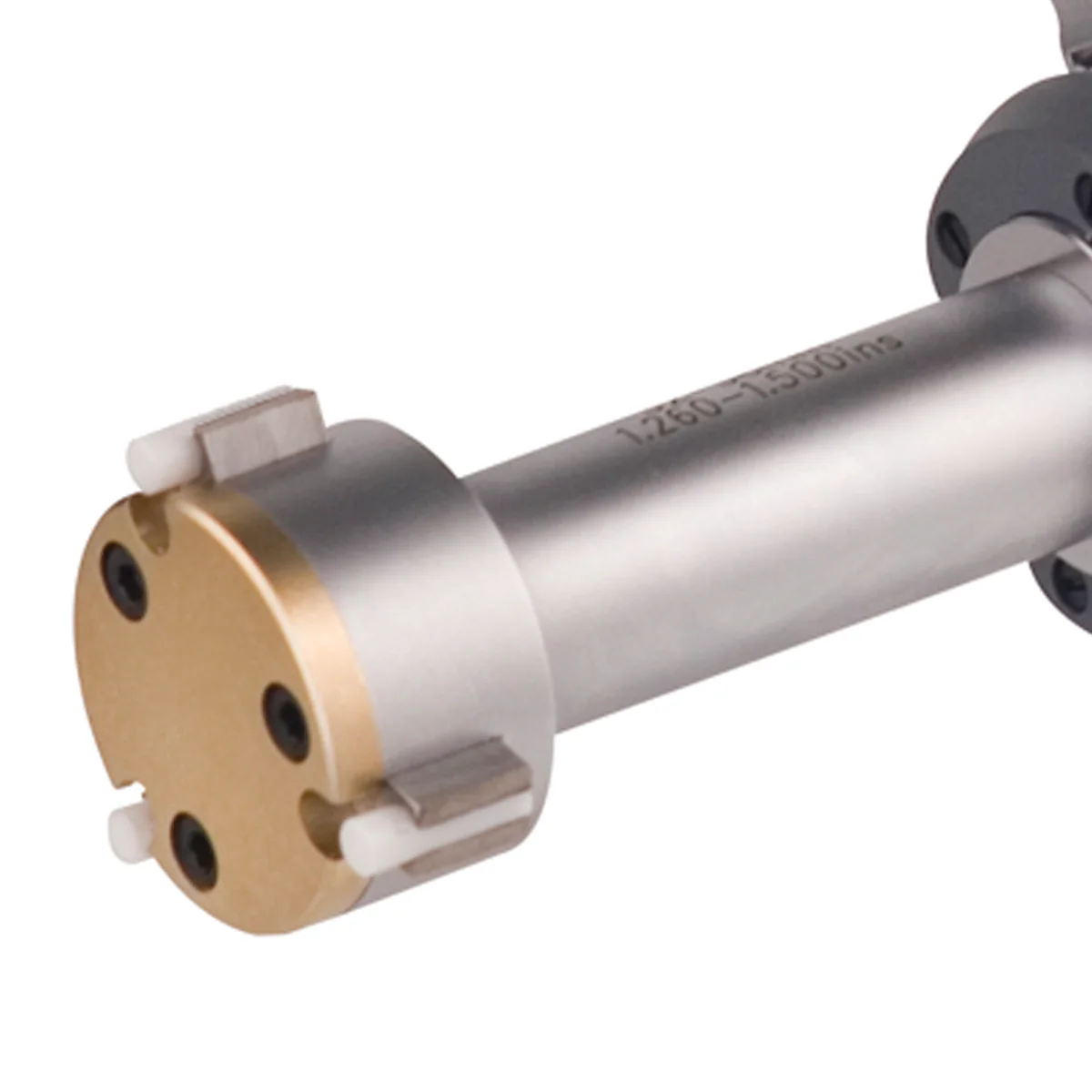

• "FASTFIT" measuring heads for rapid replacement
• UKAS certificates standard for all measuring heads
• UKAS certificates standard for all setting rings
• Ceramic anvils on heads above 0.472"/12mm
• Blind-bore measurement standard above 0.472"/12mm
• Possible to connect several probe holders to one single readout to measure different bore sizes at one measuring station
• The complete range of Bowers special heads are available for the Ultima (grooves, threads, splines, deep-bores etc.)
• Depth stops available for all heads
• Extensions available for deep bore measurement

Special features:
• Greater accuracy
• Utilizes Bowers' "FASTFIT" measuring heads
• Setting rings manufactured to DIN Standard 2250 part 2
• Extended head ranges (above 14mm) for greater flexibility and cost-effective measurement
• All 2-6mm sets supplied with depth-stop as standard

 *Sylvac display is not included
